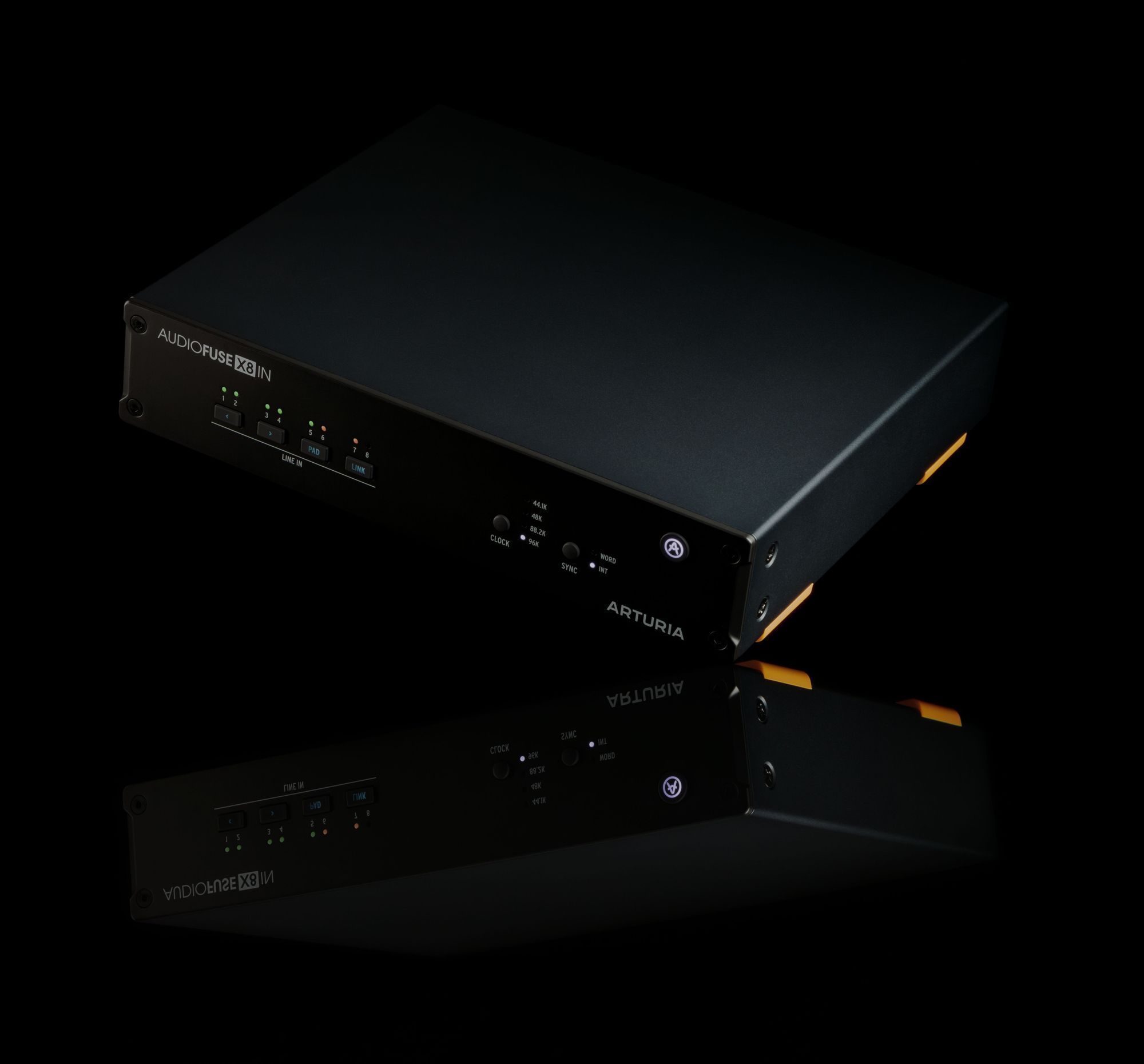

AudioFuse X8 IN

_AudioFuse X8 IN

Expand your audio experience

AudioFuse X8 IN enhances the flexibility of your studio with 8 premium line-level inputs. Link to any ADAT-compatible audio interface and accommodate more instruments and outboard gear.

What's included?

Comp DIODE-609Comp DIODE-609
Analog Lab IntroAnalog Lab IntroV.5
Chorus JUN-6Chorus JUN-6
Phaser BI-TRONPhaser BI-TRON
Rev PLATE-140Rev PLATE-140
Delay TAPE-201Delay TAPE-201
Comp FET-76Comp FET-76
Pre V76Pre V76
Pre TridAPre TridA
Pre 1973Pre 1973
Filter MINIFilter MINI

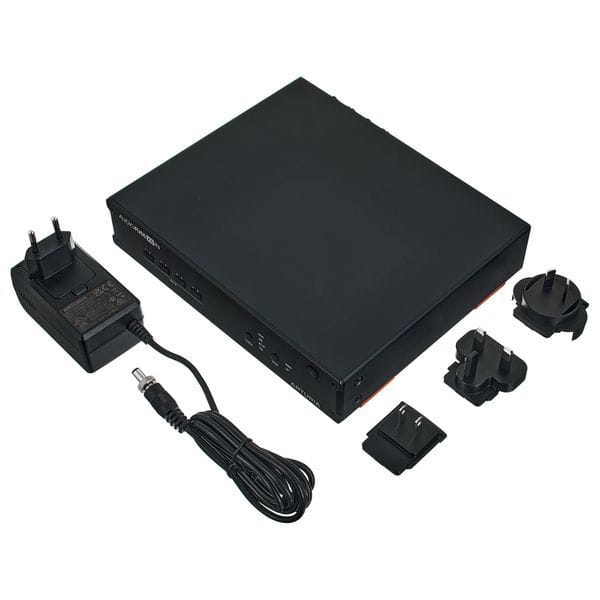

AudioFuse X8 IN & Power supply
AudioFuse X8 IN & Power supply

8.70 x 8.50 x 11.89 inches (221 x 216 x 48mm)

_Main features

Audio interface expander

8 high quality analog inputs [1/4" TRS]

  • Input impedance: 20kΩ
  • Input impedance: 20kΩ
  • Maximum input level: +24dBu
  • Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
  • Dynamic range: 119dB typical (A-weighted)
  • THD+N @ 1kHz: -112dB typical (un-weighted)

Latest generation AD converters up to 96 kHz

  • 44.1kHz
  • 48kHz
  • 88.2 kHz
  • 96 kHz

ADAT out

BNC Word clock in

VU meter to monitor your sound in real time

Robust half 1-U aluminum rack chassis

Removable rack ears included for flexible installation

AudioFuse creative suite included to explore and alter your sound

_Resources and documentation

Access helpful documentation, updates, and extras to enhance your product experience.
