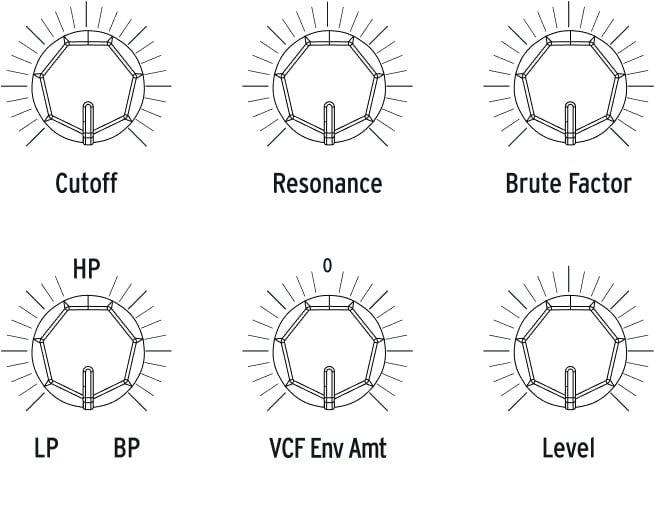

Classic 12db/octave multimode filter updated to be continuously variable between lowpass, highpass, bandpass and notch modes. Crank up the Brute Factor feedback control to add bark and bite as desired.

Legendary 24db/octave lowpass filter inspired by Dr. Bob Moog. Embellishments include distortion overdrive and high-resonance gain compensation.

Balances the levels of all three sound sources and determines the routing of each through one or both filters.

Big macro control knob for simultaneous control over the cutoff frequencies for both filters. Run PolyBrute 12's two filters in series to create unique filter characteristics, or in parallel for stereo synthesis with different sounds per channel. You can even craft a mix of both modes for yet another signature sound!

Dedicated easy-access amount controls for instant hardwired filter modulation. VCF 1 (Steiner) is modulated by VCO 2, and VCF 2 (Ladder) is modulated by the Noise generator.

Dedicated velocity-sensitive ADSR Envelope Generators for VCF and VCA - no Matrix assignment required. The freely assignable third EG complete with added delay stage is ready to shape whatever sonic parameter you want in the Matrix.

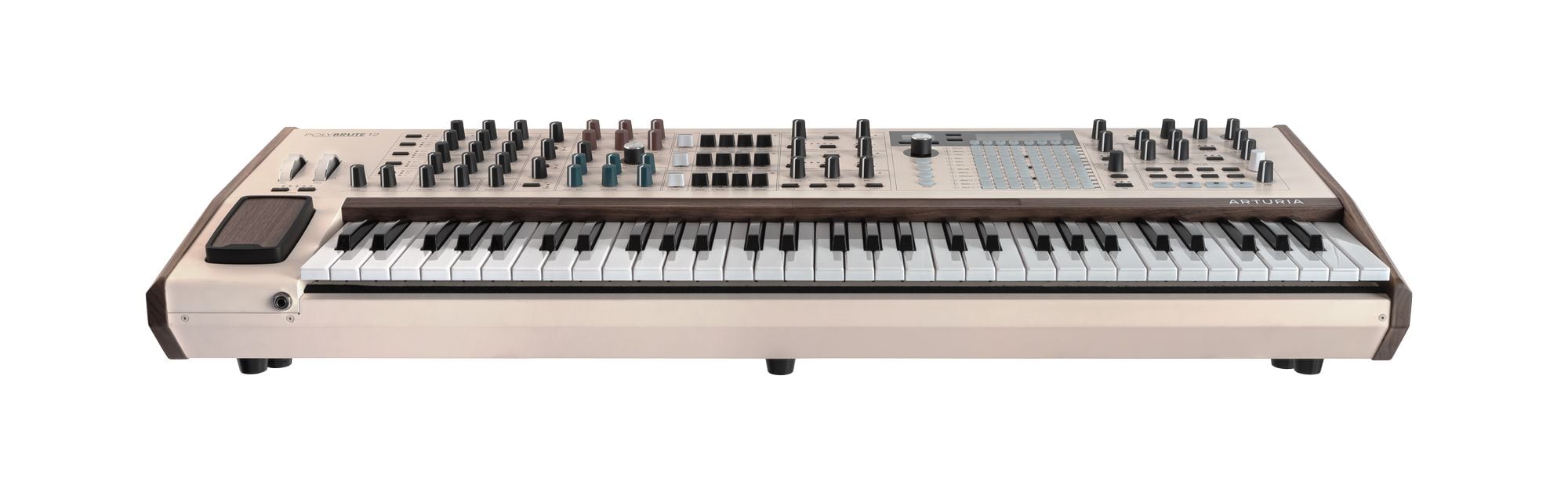

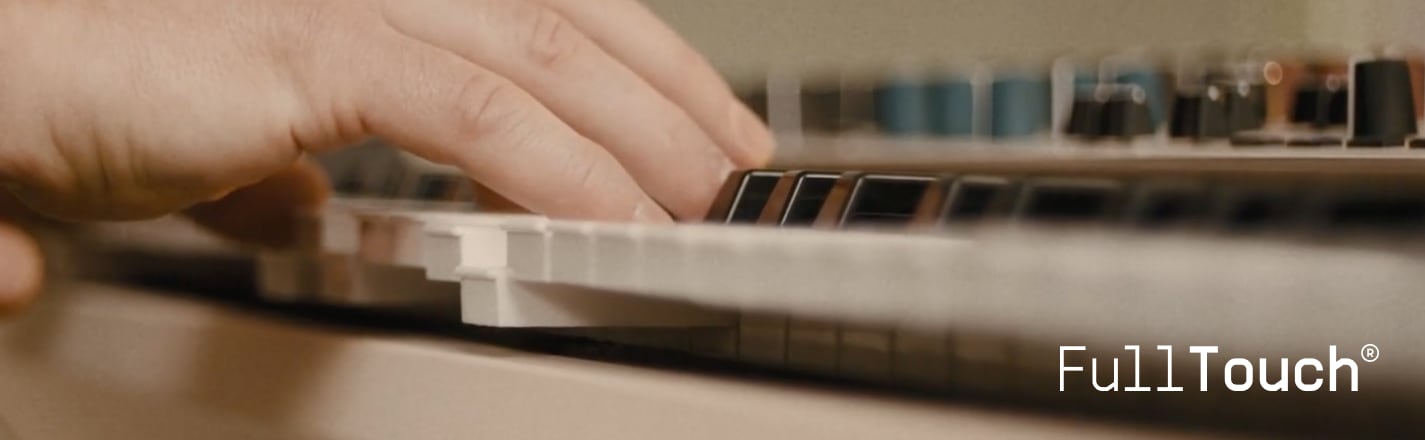

61-note MPE polyphonic keyboard that tracks position, pressure, and touch of every key. Up to 12-voice polyphony with split, layer and unison capabilities.

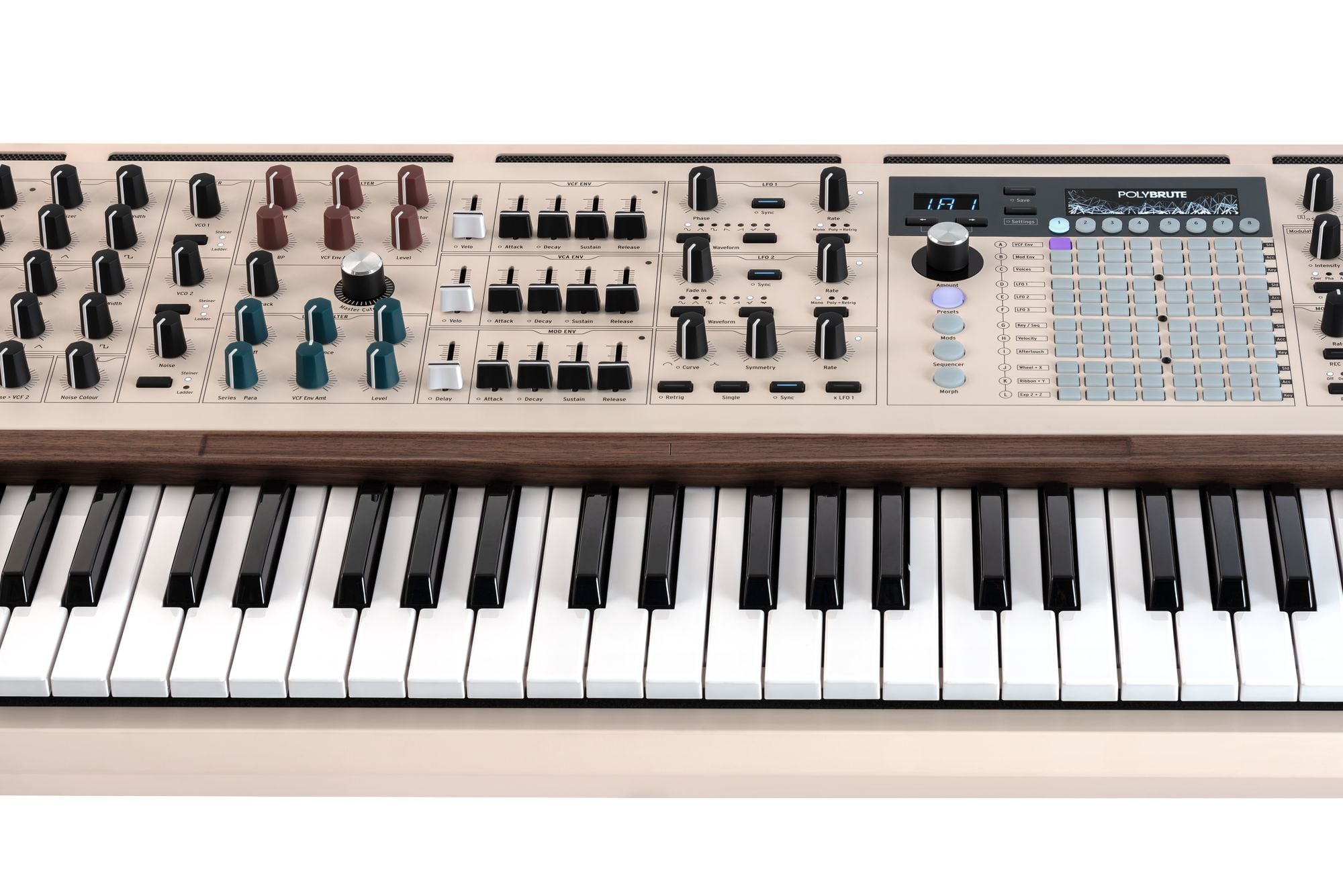

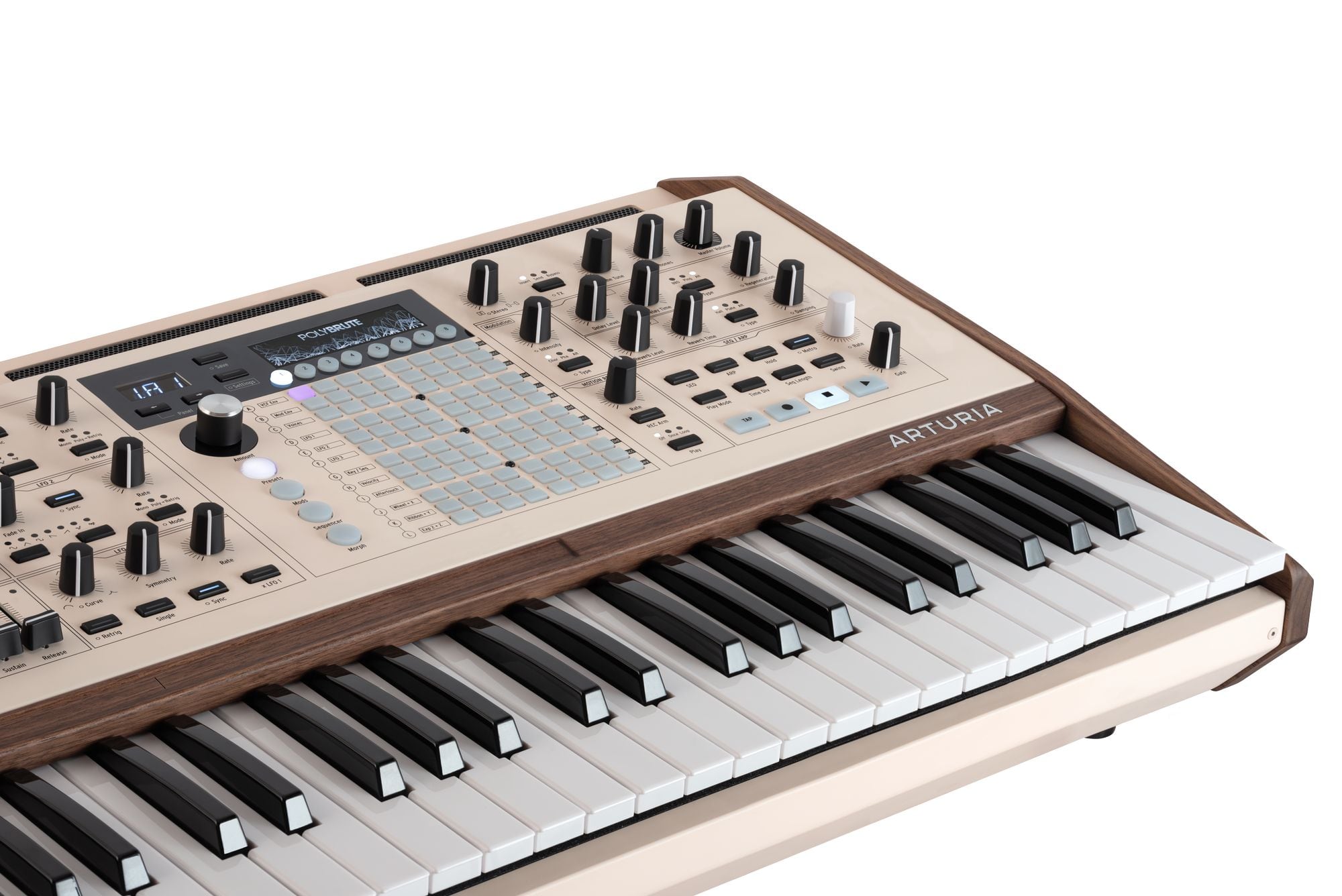

• Presets mode: Easily save and recall 768 memory locations - even more with the PolyBrute Connect software. PolyBrute 12 comes with 480 professionally designed patches to inspire you right out of the box. • Mods mode: Route any of PolyBrute 12's modulation sources to one or more destinations - almost any knob or fader - with positive or negative amounts set via the large encoder knob. With up to 32 modulation destinations and 64 total connections, what new sounds will you discover? • Sequencer mode: The Matrix is the perfect medium to visualize creating and editing polyphonic sequences. Button color intuitively represents step status including notes, ties, mutes and other nuances.

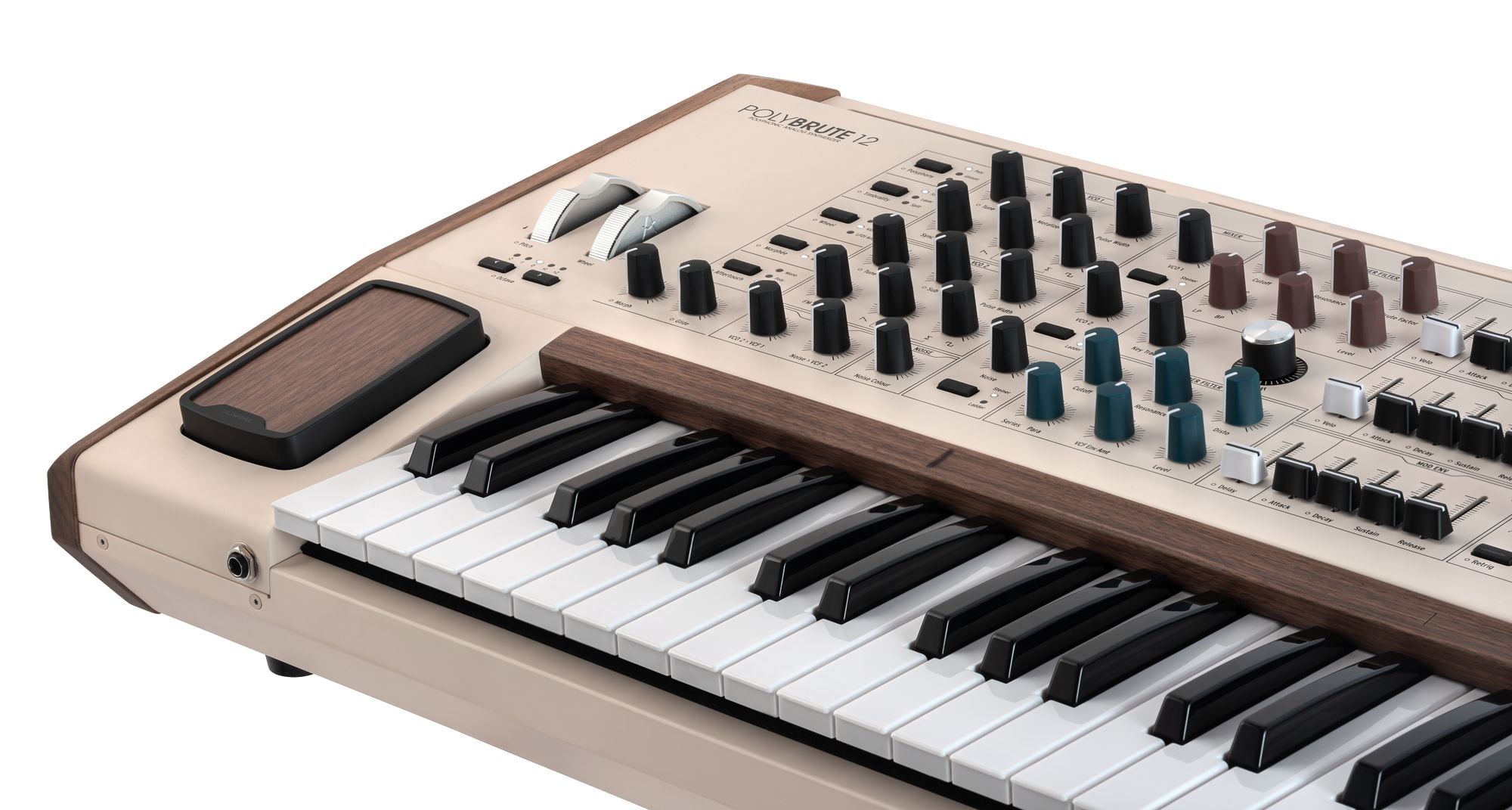

Touch-sensitive strip immediately above the keyboard ready for you to slip, slide and tap to control pitch, volume or any Matrix destination you want to assign. This rare controller is positioned in such a way that you can even incorporate it in your keyboard fingering!

Determines stereo placement of voices, overall fine tuning, headphone volume, master volume and more.

This built-in array of high-quality stereo digital effects - chorus, phaser, flanger, delays, reverbs and more can also be modulated via the Matrix to become an integral part of your synth patch designs.

Simple means to instantly record your real-time performance of a single synth control, then play it back with every subsequent note trigger. Great for easily creating custom envelope curves for most PolyBrute parameters.

• Sequencer mode: Craft polyphonic sequences of up to 64 steps, including velocity, accents, slides and randomization. Three parallel modulation tracks can automate timbre changes along with triggered notes or serve alone as exotic envelopes. • Arpeggiator mode: Steps through your held notes in a variety of musically useful orders, optionally repeated in higher octaves. Matrix Arpeggiator mode: Advanced sequencer/arpeggiator hybrid that lets you construct a 16-step framework to generate complex arpeggios. This opens up a whole new realm of assisted performance.

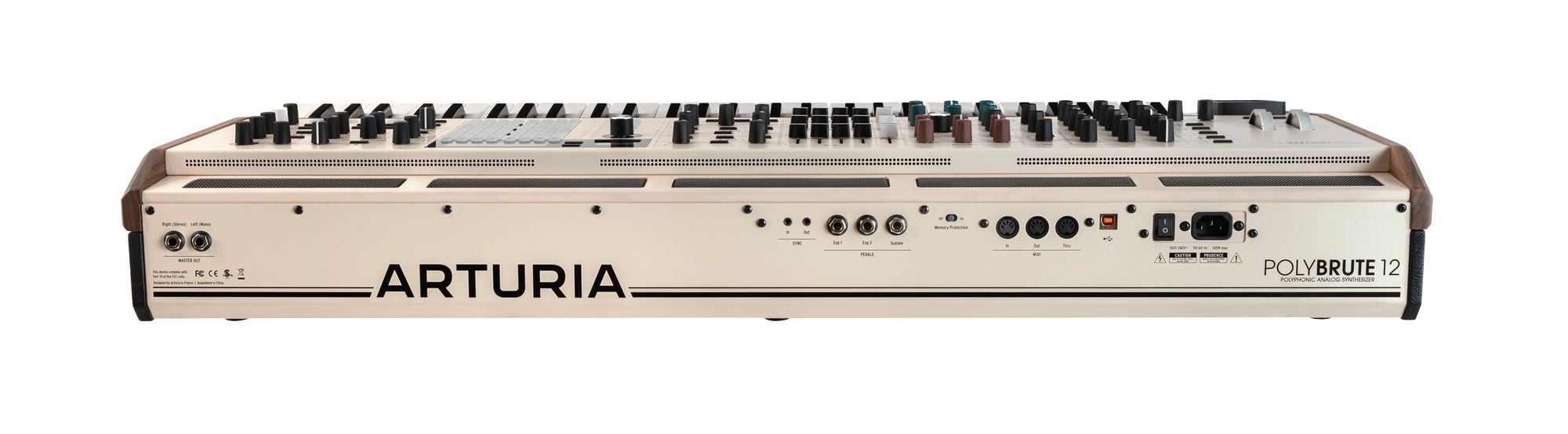

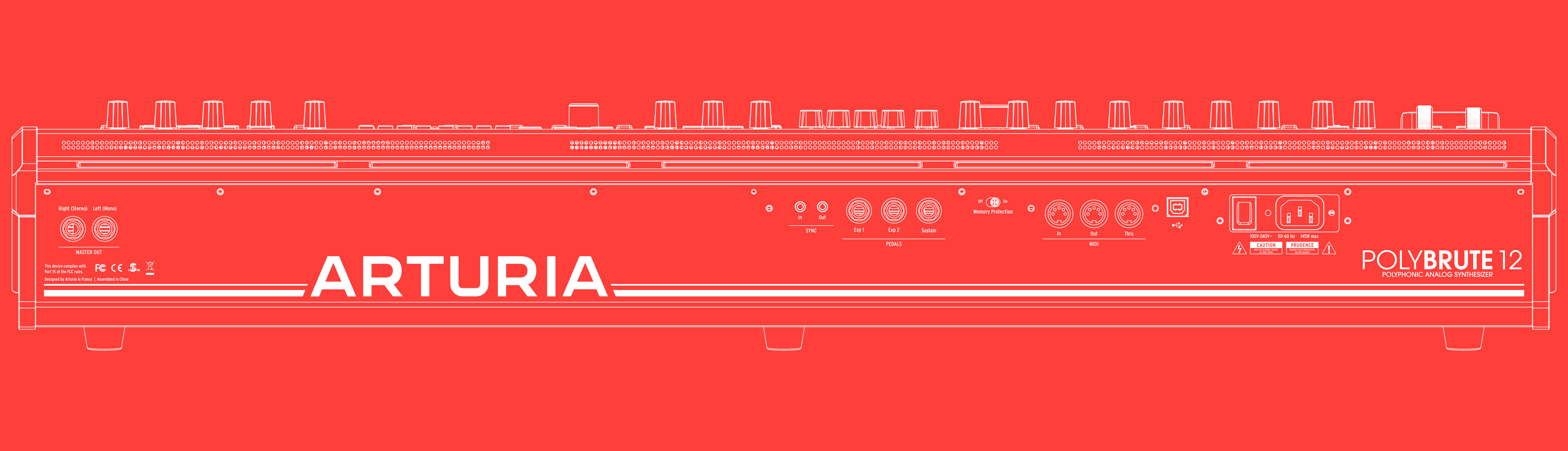

Capture the full sonic power and width of PolyBrute 12 with stereo audio output.

Keep things in sync and mediate timing or tempo between other analog gear and modular rigs with control voltage in/out.

1 sustain and 2 expression pedal ports enable advanced hands-free modulation.

When On, prevents the PolyBrute 12's patch memories from being overwritten.

Connect MIDI In, Out or Thru to get PolyBrute 12 talking to your setup.

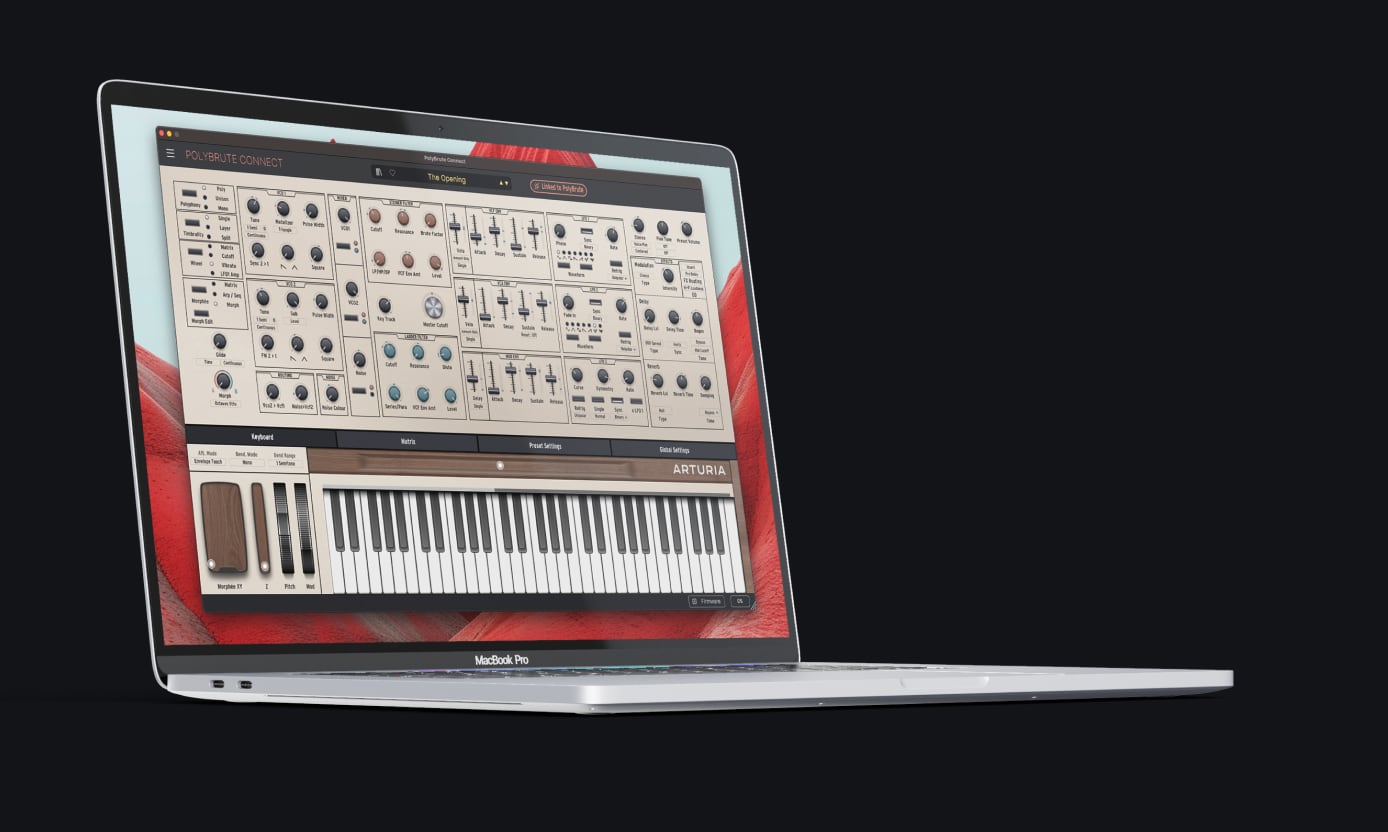

Connect to your computer for updates, preset management and using PolyBrute 12 with its companion software: PolyBrute Connect.
