Your recording
all-in-one
Beginner music makers, content creators, producers with limited space, musicians on a budget - whoever you are, enjoy an affordable, easy, pro-grade recording bundle for vocals, instruments, and any audio you need.
Quick recording
Record your vocal tracks, musical sketches, instrumental audio, and anything else right out the box. This bundle has everything you need to get your sound out there.
Handy studio solution
A plug-and-play interface bundle that connects you, your computer, your voice, your MIDI gear, and more - your compact studio hub.
Production-ready software
Go beyond simply recording; 8 premium software titles let you perfect your mix, explore inspiring synth sounds, access millions of samples, and beyond.
What’s
included?
_1
_2
_3
_4

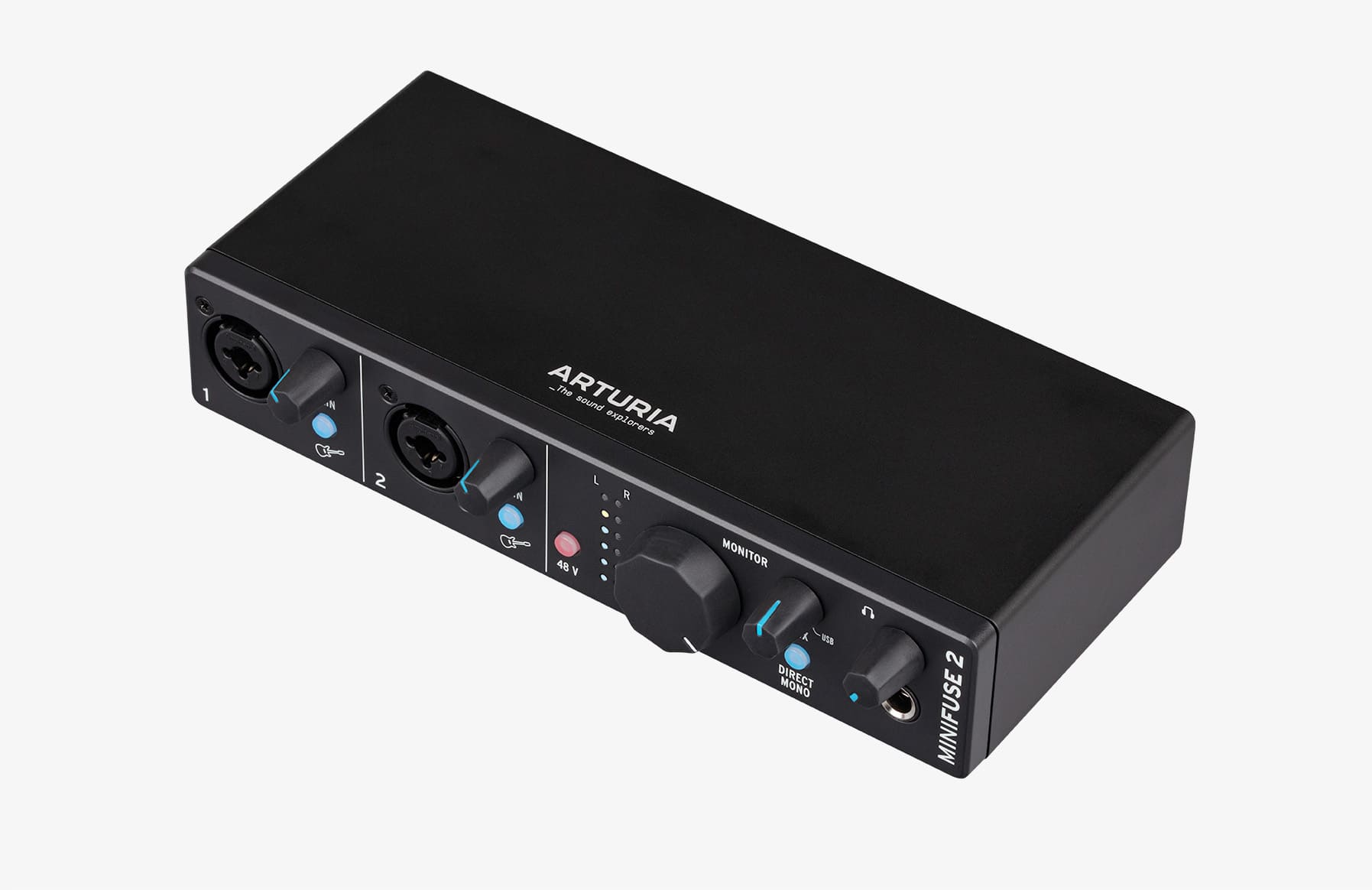

1 MiniFuse 2
2-in/2-out audio & MIDI interface

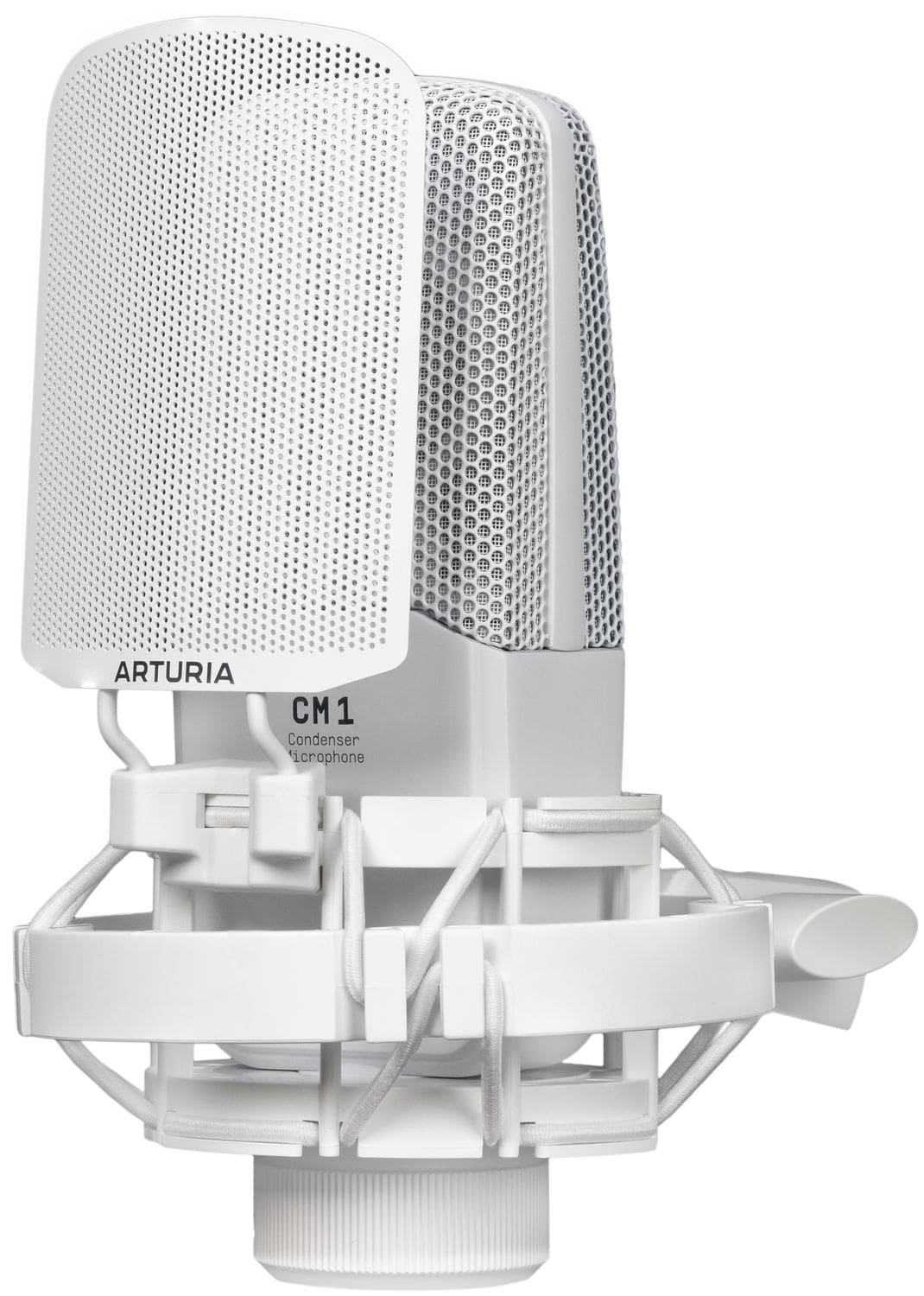

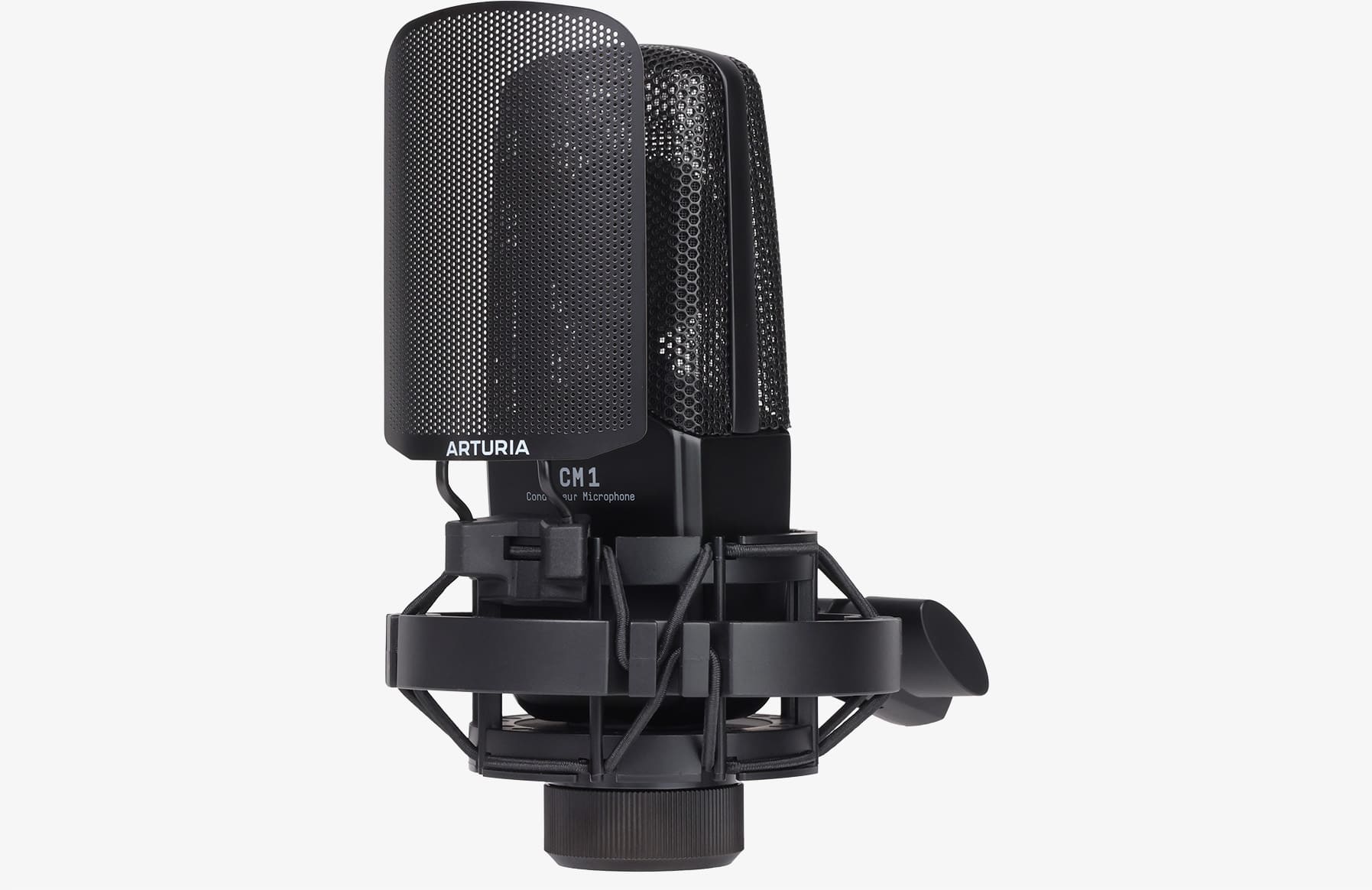

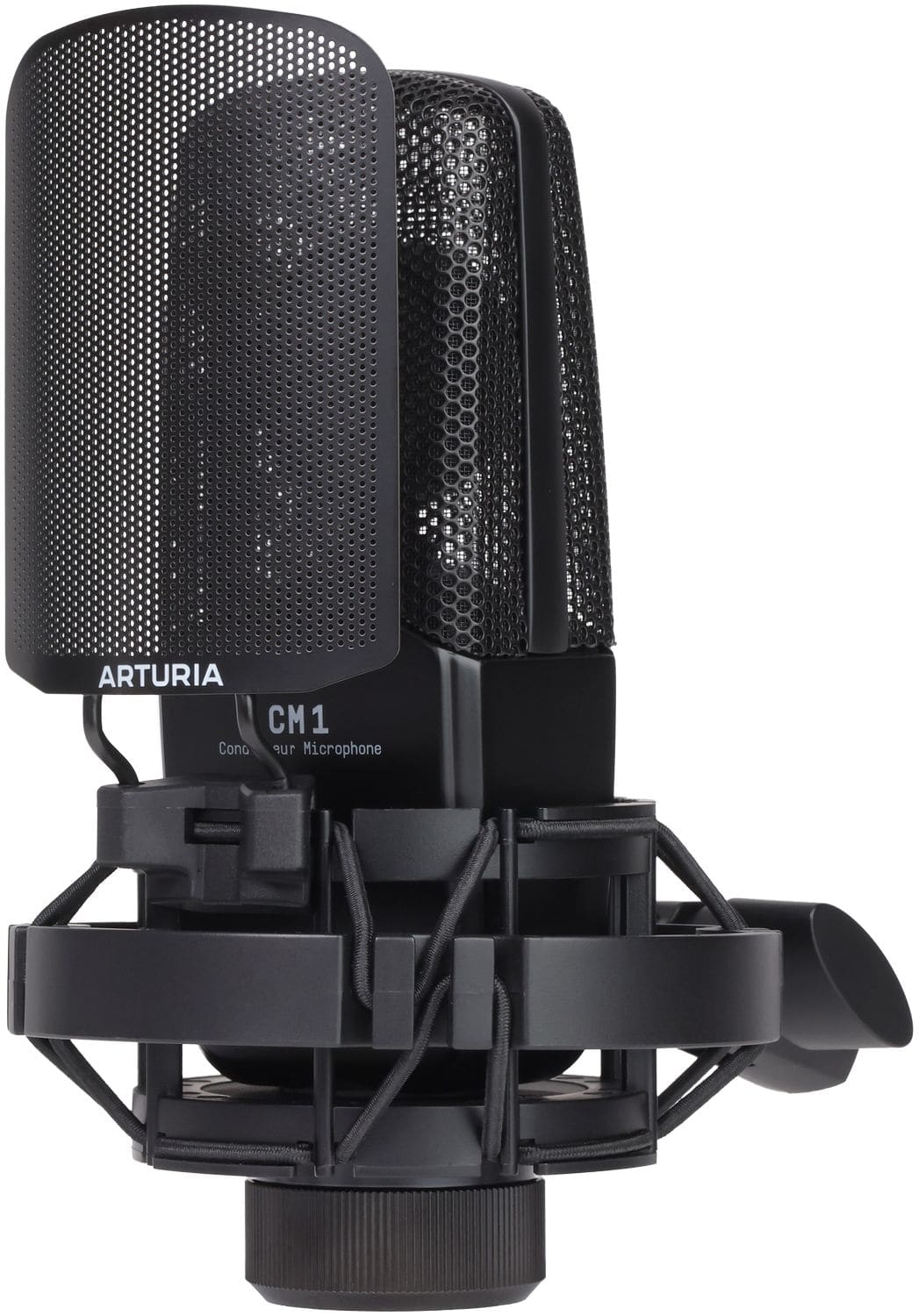

2 Microphone
CM1 cardioid mic, including shockmount & pop filter

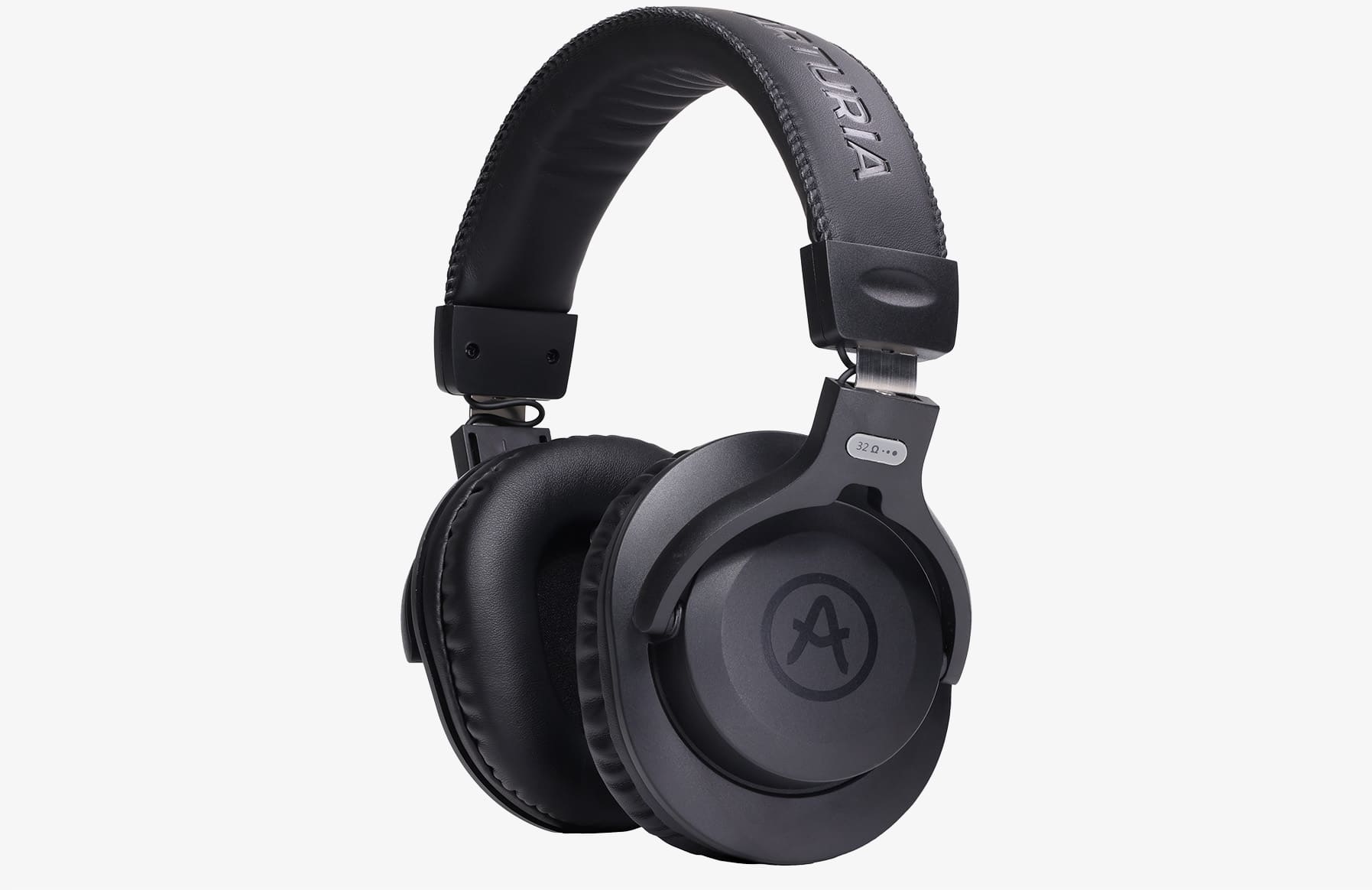

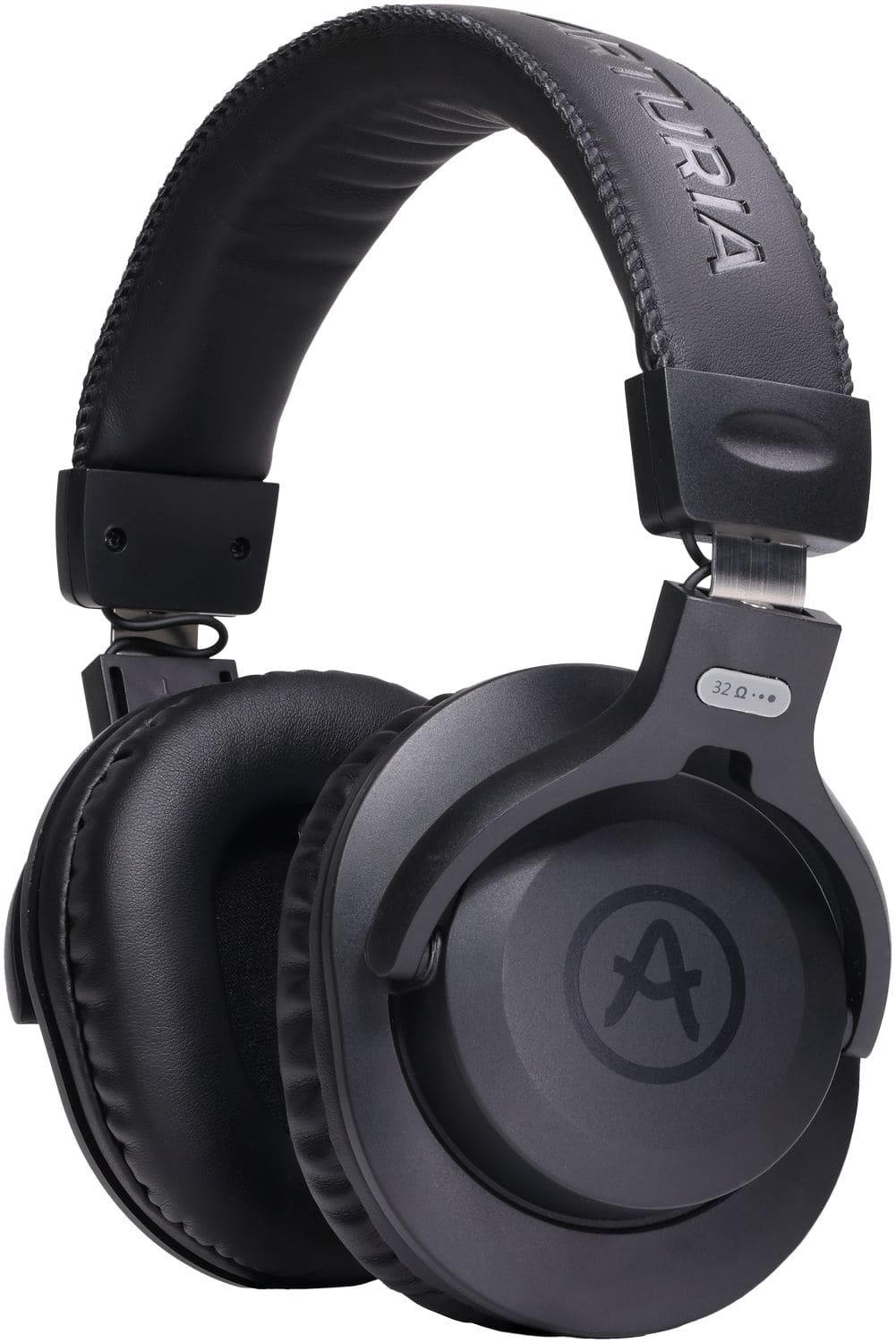

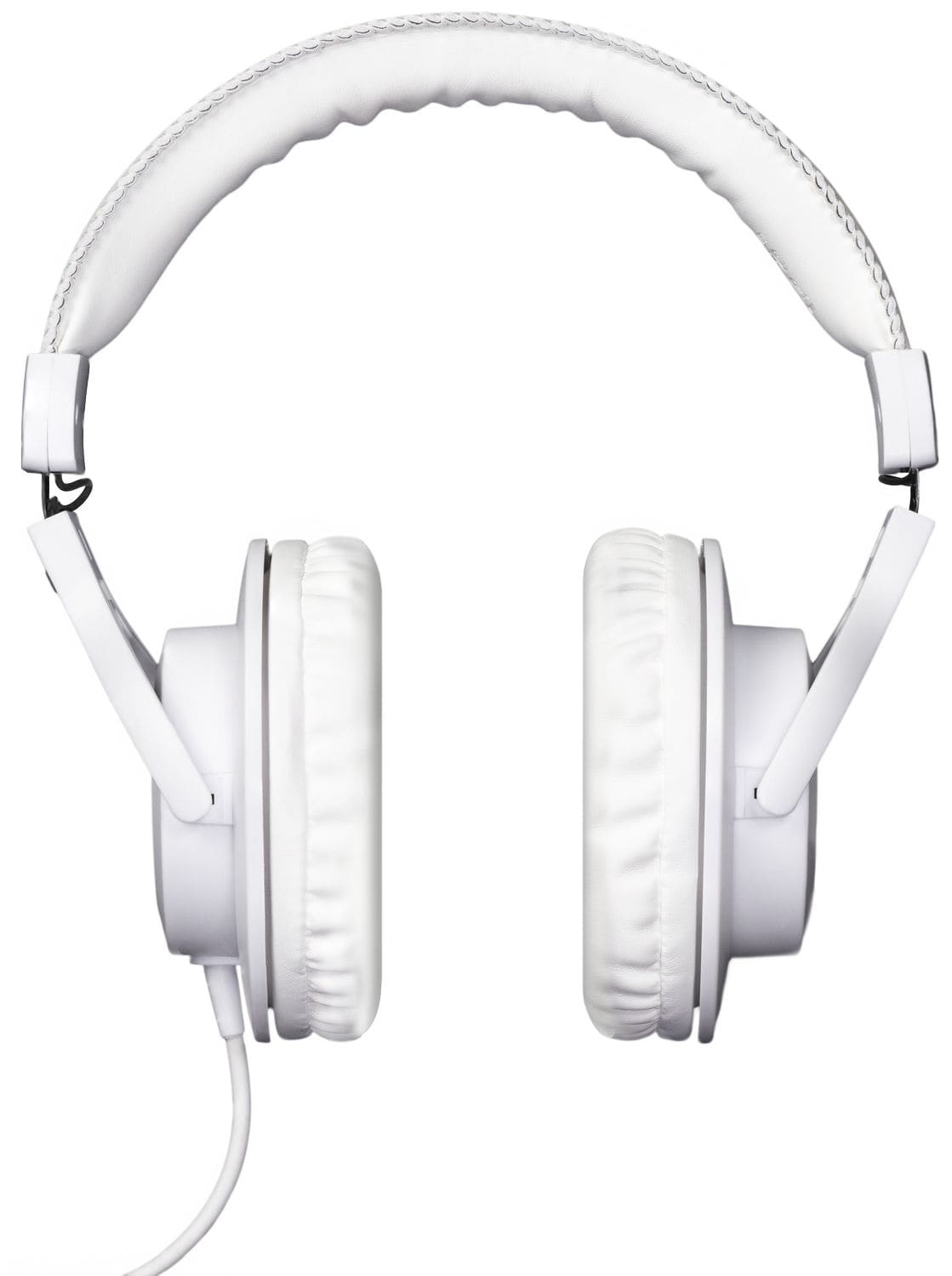

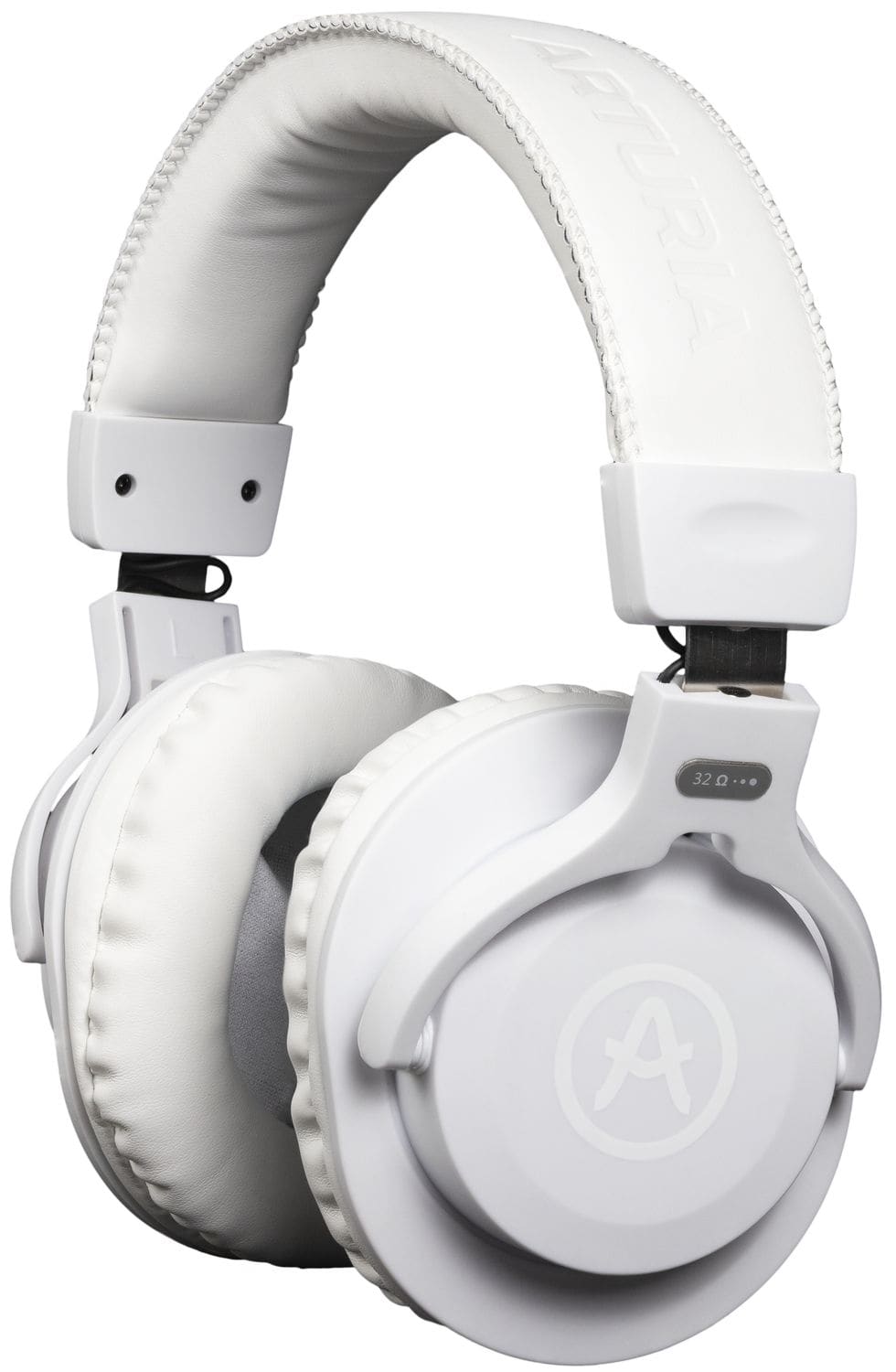

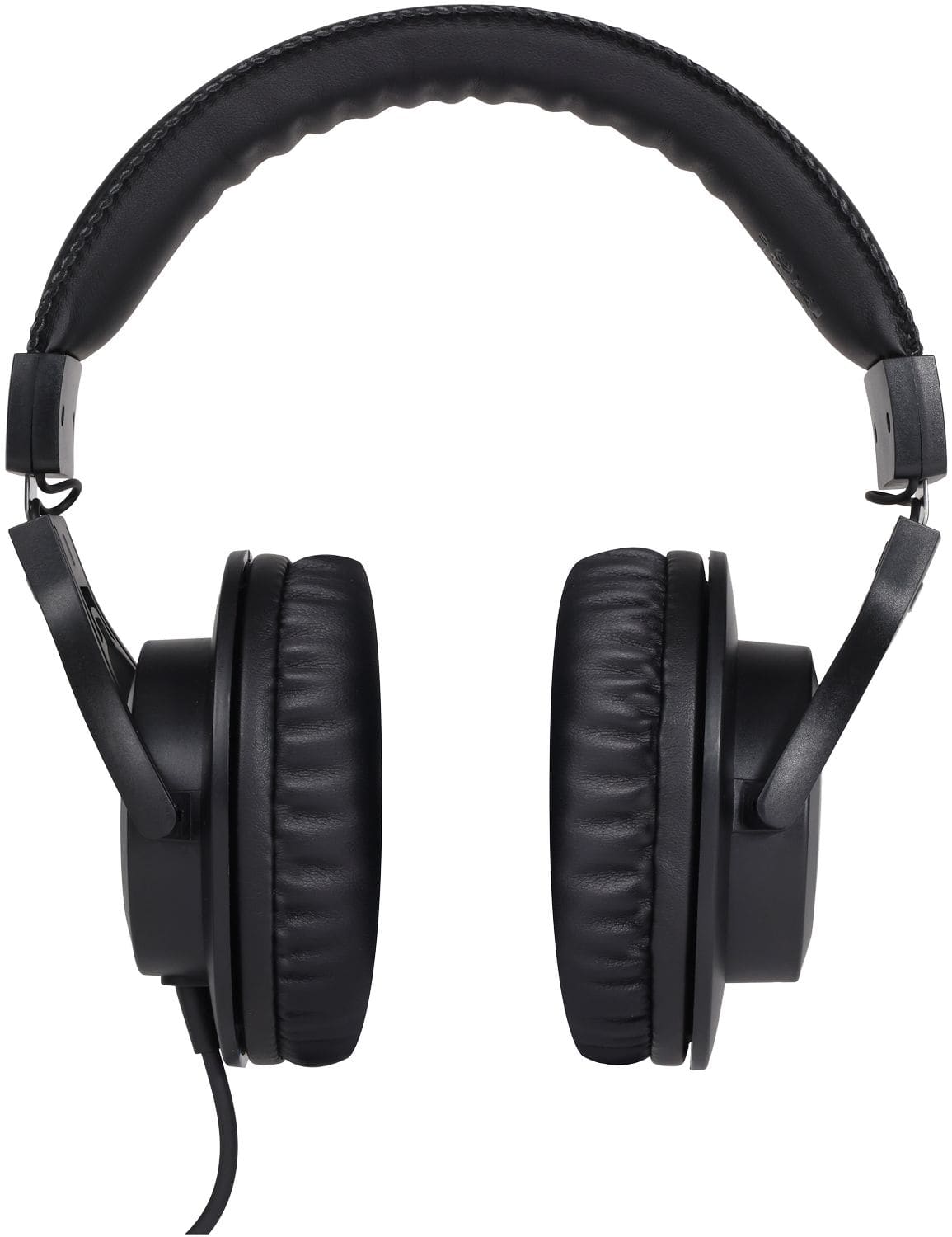

3 Headphones
EF1 closed-back, low-noise design, including adapter
4 XLR cable
3m length for easy mic setup
The best music-making software
included for free
The MiniFuse Recording Pack doesn’t just take care of your recording needs.
Make the most of pro-level mixing tools, explore vintage & modern software instruments, and give your sound the professional edge with the same exceptional software used by music and audio professionals worldwide.
Ableton Live Lite
Compose, record, perform, and produce anything with an introduction to one of the most widely-used musical software titles in the business - yours with MiniFuse.
Analog Lab Intro
Instantly add inspiring sounds from our award-winning keyboard emulations to your mix with hundreds of presets to explore, from vintage ‘80s synths to fat modern sounds.
Arturia FX
Color your sound with 4 premium FX plugin recreations of studio classics; a lush plate reverb, a gritty analog preamp, a classic tape echo, and a rich stereo chorus.
Native Instruments GUITAR RIG 6 LE
An inspiring selection of amps, cabs, delays, reverbs, stompboxes and compressors, so you can build your own processing chains and customize your perfect guitar tones.
Auto-Tune Unlimited
Refine your vocal parts for perfect harmony or go full trap-style autotune with a 3-month subscription to the industry’s favorite voice tuning plugin.
Splice Creator Plan
Access millions of hi-def royalty-free samples, from lo-fi drum loops to punchy vocal one-shots, as well as synth sounds, Splice Skills tutorials, and much more.What’s stopping you?
Express
yourself

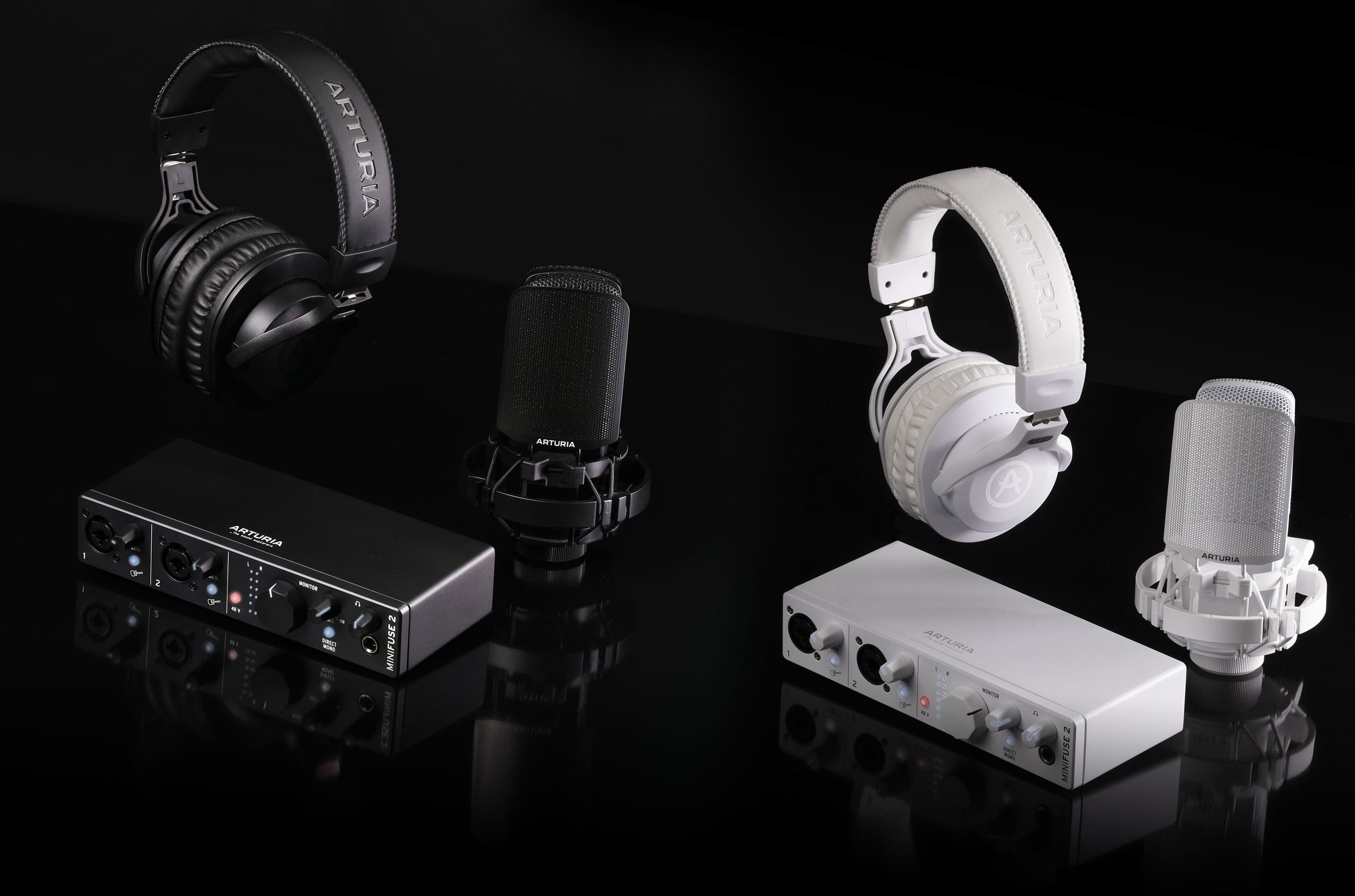

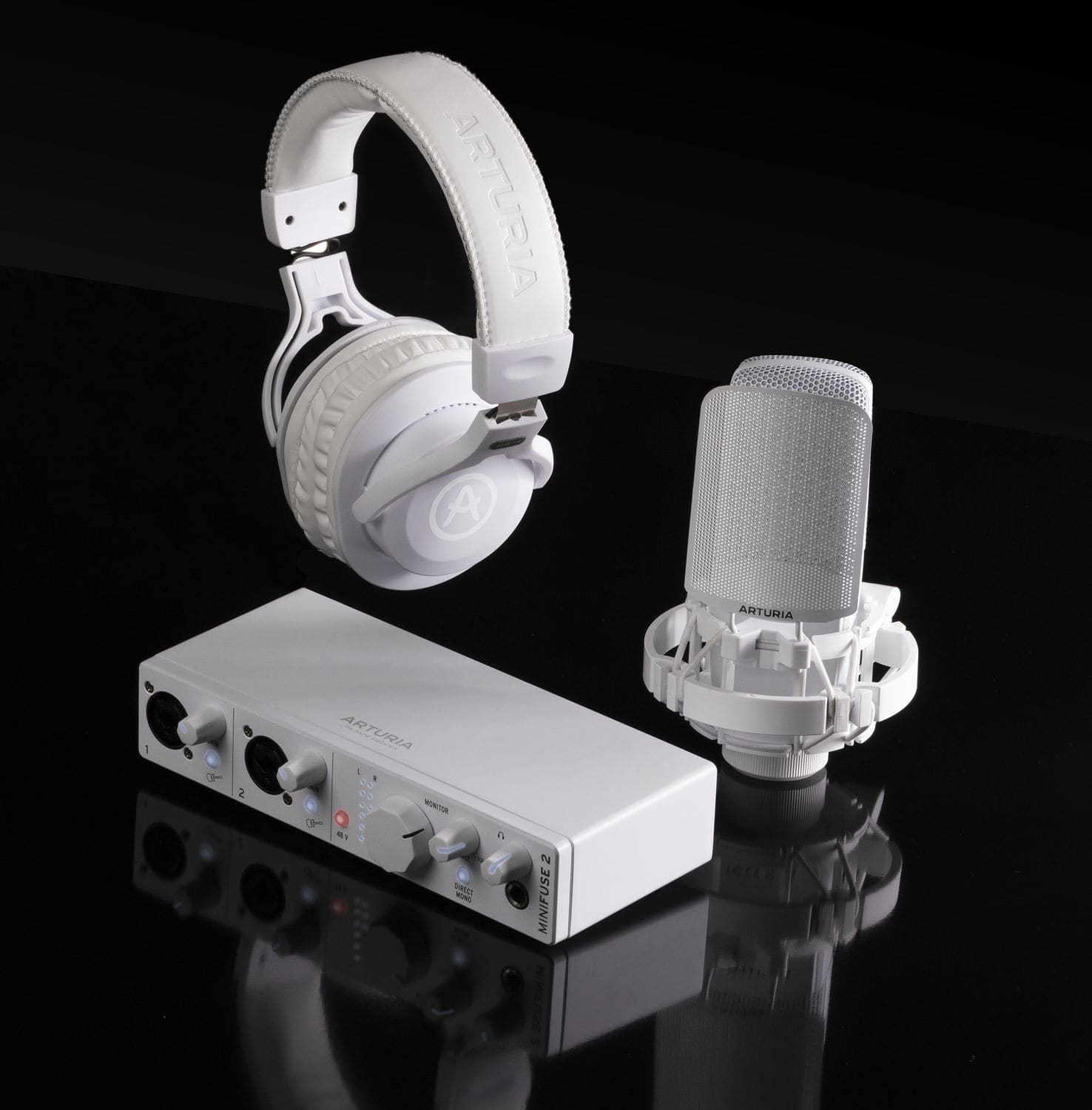

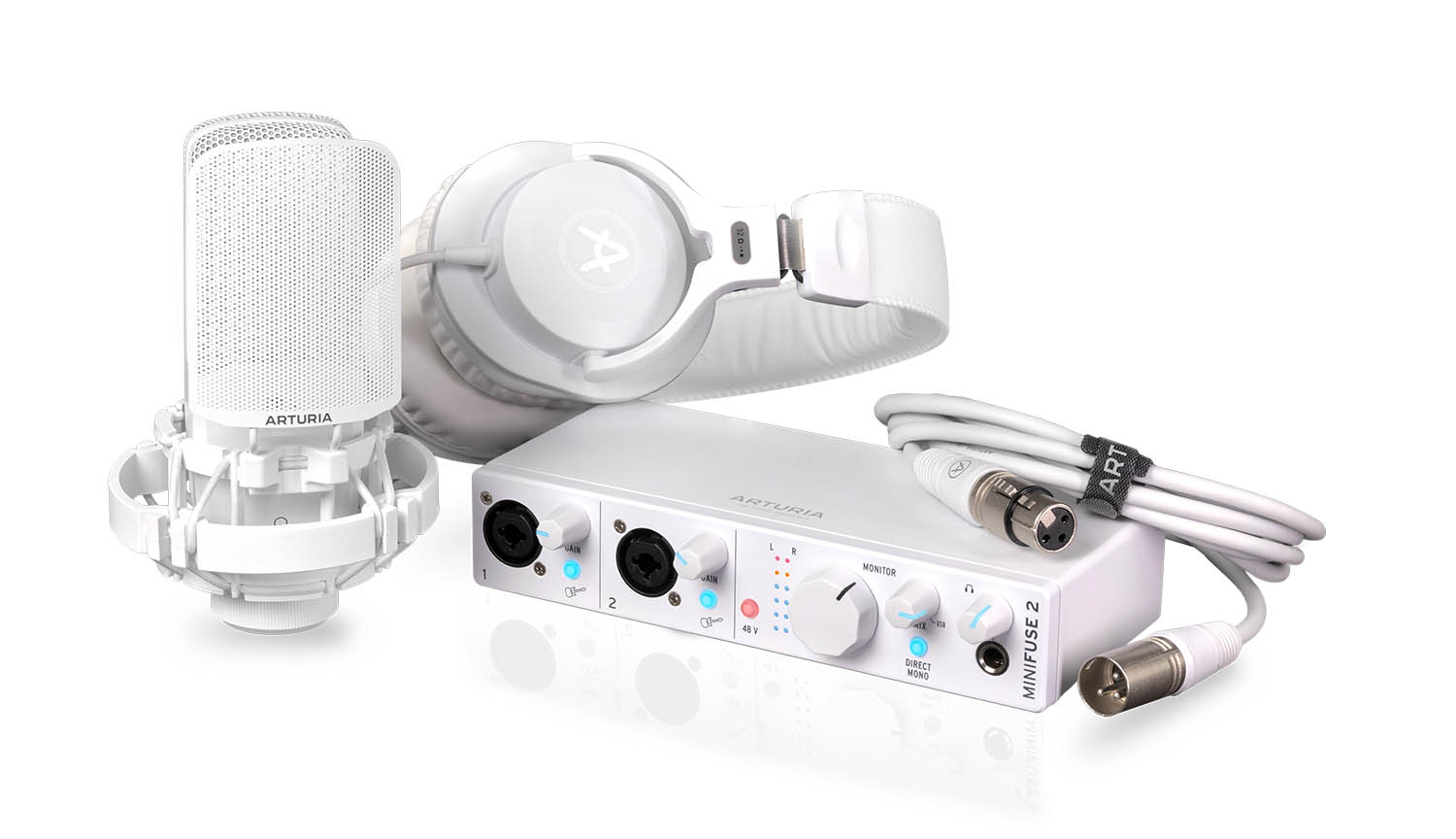

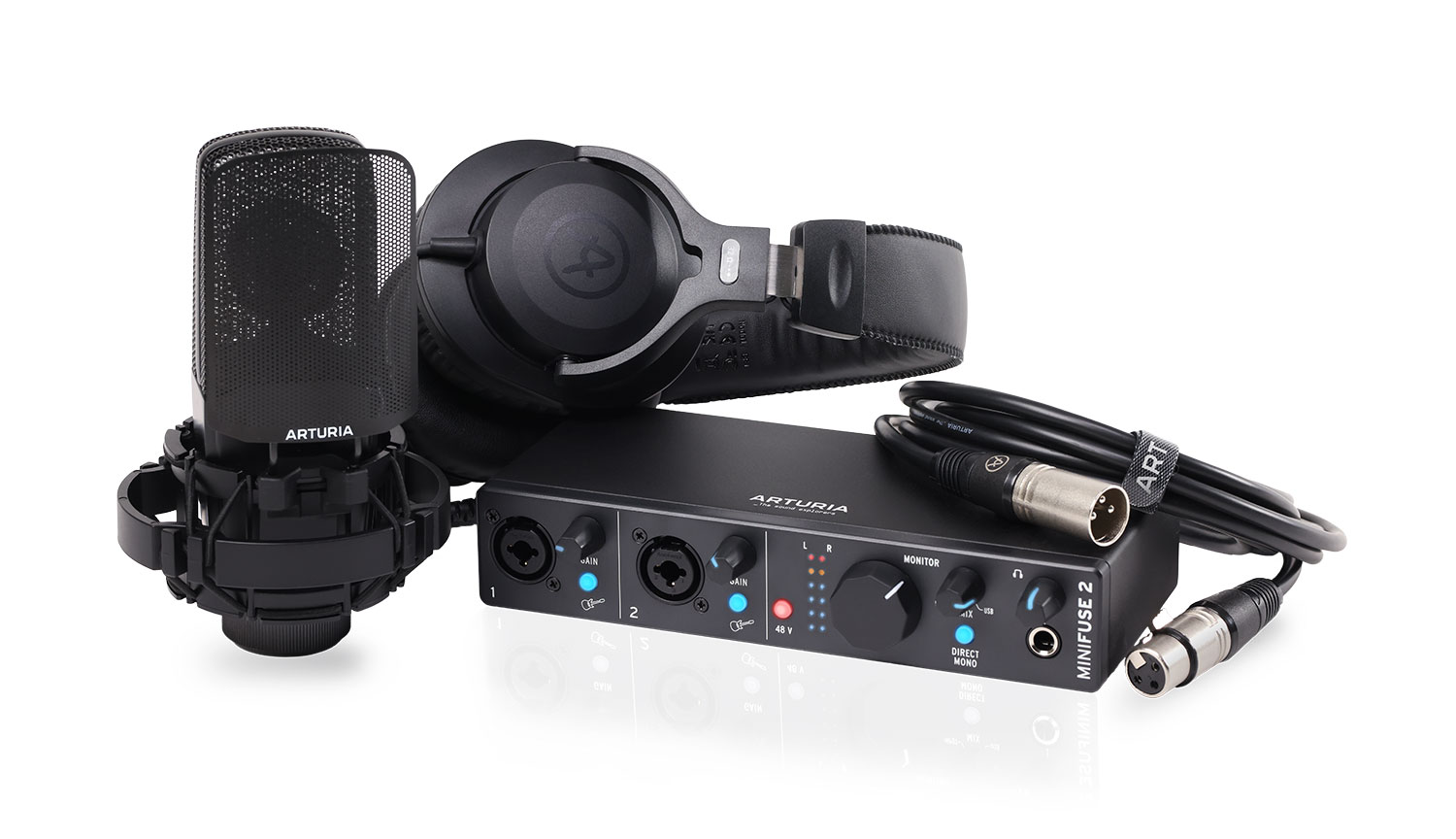

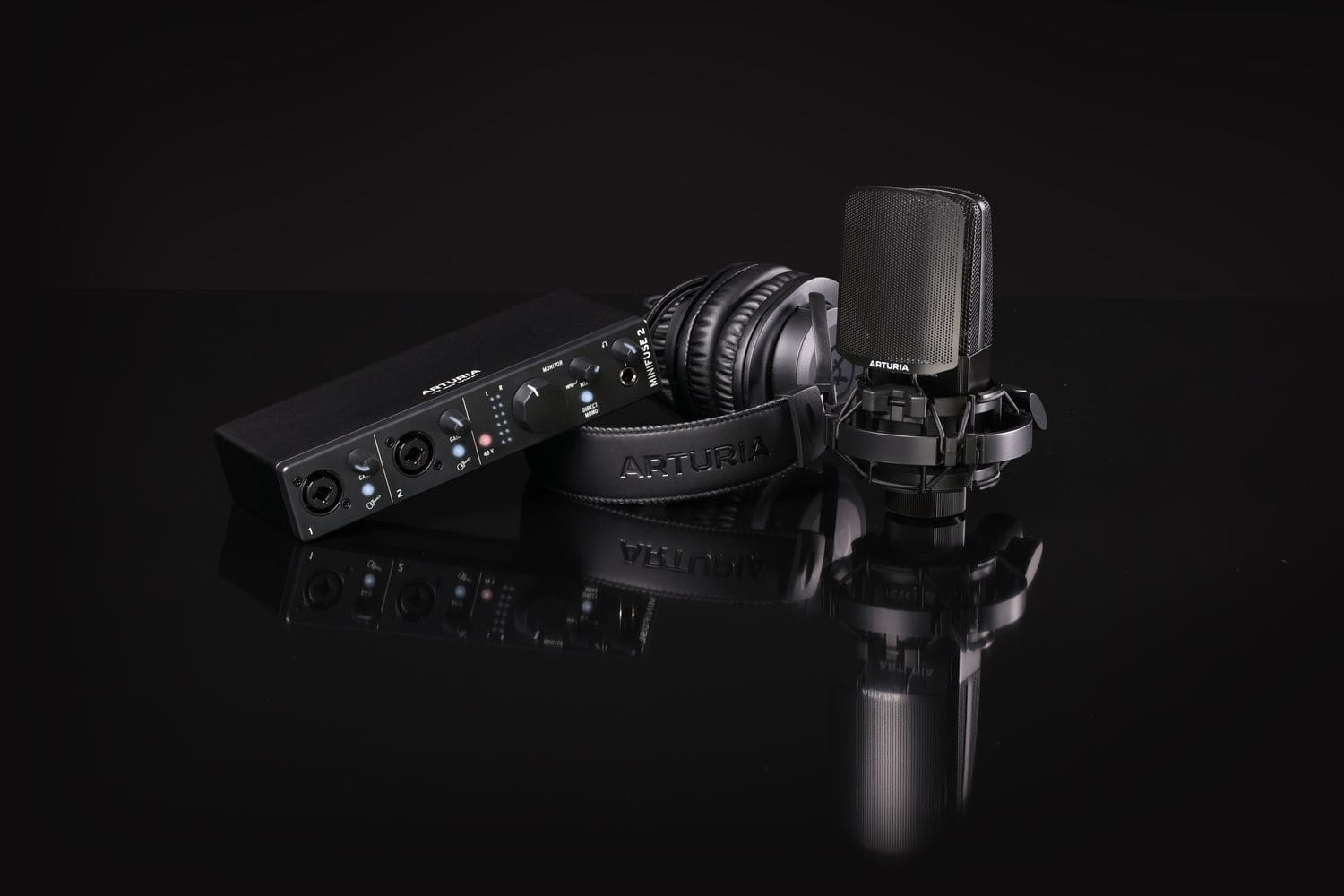

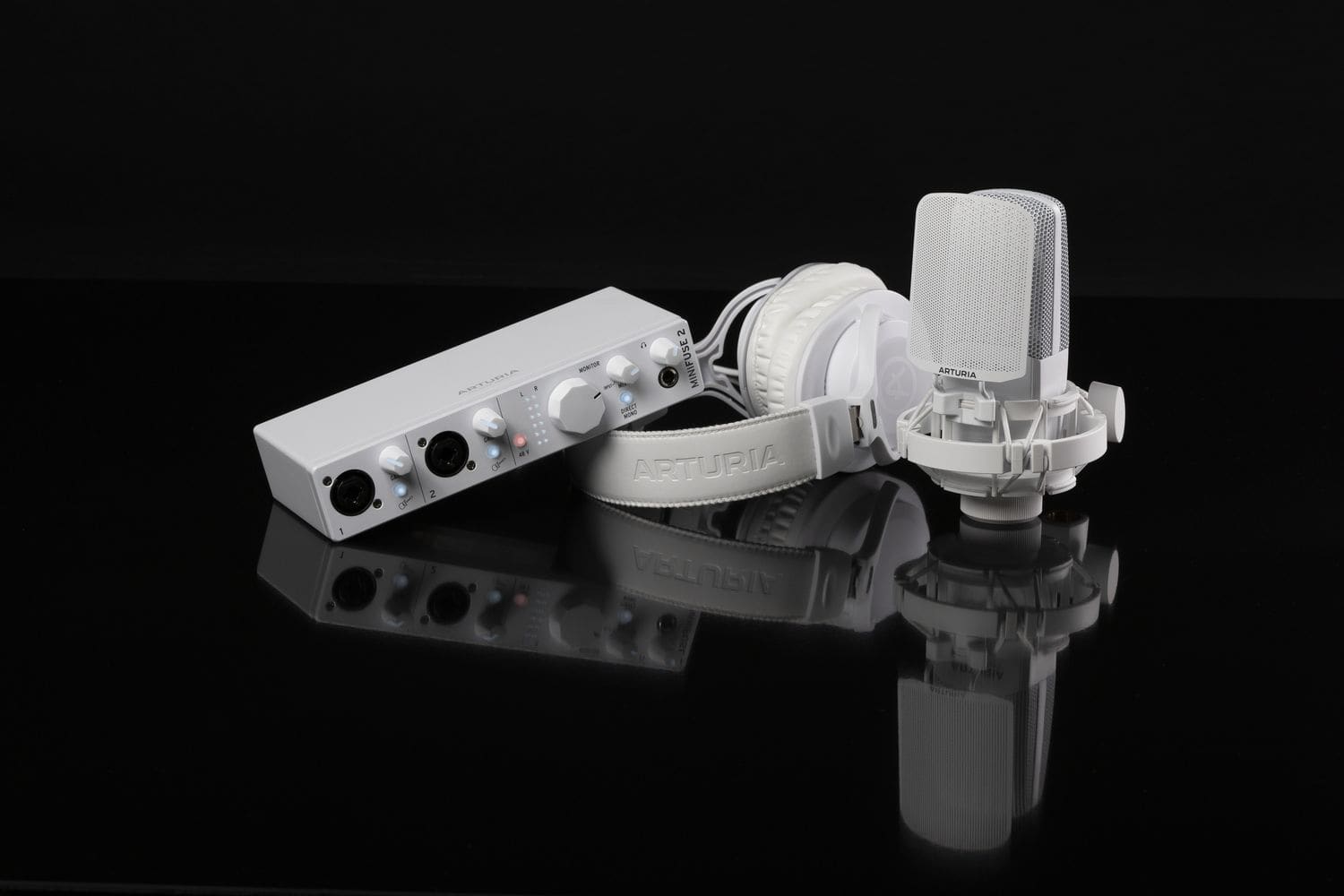

Choose between a darker aesthetic or a bright modern look with black and white versions of the MiniFuse Recording Pack.
Technical Information
A closer look at the technical side of the MiniFuse Recording Pack, from audio specifications to connectivity.
Microphone
• Capsule: Condenser (Cardioid)
• Sensitivity: -36 dB ‡3 dB (0 dB = 1 V/Pa at 1 kHz)
• Frequency response: 20 Hz to 20kHz
• Impedance: 110Ω +/-30% (at 1 kHz)
• Recommended Load impedance: > 1kΩ
• Equivalent Noise Level: < 20dBA (IEC 581-5)
• S/N Ratio: 74 dB
• Maximum SPL: 130 dB
• Power requirement: 48V phantom supply
• Current: 3.2 mA
Headphones
• Type: Closed-back
• Drive diameter: 40 mm
• Impedance: 32Ω
• Sensitivity: 99 dB +/- 3dB
• Frequency response: 10Hz to 20kHz
• Max. power rating: 1.2W
• Cable length: 3m
• Weight: 260g with cable
Line Inputs
• Input impedance: 16kΩ
• Maximum input level: +22dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)
Instrument Input
• Input impedance: 1MΩ on Tip
• Maximum input level: +11.5dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -91dB typical (un-weighted)
Microphone Preamps
• Input impedance: 2.5kΩ
• Maximum input level: +9dBu
• Gain range: 56dB
• Equivalent Input Noise (EIN): -129dB typical (A-weighted)
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)
Speakers
• Output impedance: 94Ω
• Maximum output level: +12dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 107.5dB typical (A-weighted)
• THD+N @ 1kHz: -101dB typical (un-weighted)
Phones
• Output impedance: 10Ω
• Maximum output level: +11.4dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 104dB typical (A-weighted)
• Power @ 33ohm: 137mW
Supported Sample rates
• 44.1kHz, • 48kHz, • 88.2 kHz,
• 96kHz, • 176.4kHz, • 192 kHz
Gallery
Main Features
All-in-one audio interface recording bundle
Premium software bundle included
- Analog Lab Intro with 500 vintage & modern keyboard presets
- Rev PLATE-140 reverb
- Pre 1973 vintage preamp
- Delay TAPE-201 echo
- Chorus JUN-6 analog chorus
- Ableton Live Lite
Subscriptions - Complimentary introductions to audio & mixing services:
- Splice Creator Plan
- Auto-Tune Unlimited
2 x combo Mic/Inst/Line XLR Input with 48V phantom power
2 x 1/4'' TRS balanced line outputs with volume control
1 x stereo headphones output with volume control
1 x 5-pin MIDI input & output
1 x USB2 type A hub (250mA max.)
1 x stereo virtual loopback channel
USB-C interface compatible with PC and Mac
Bus-powered
Platforms requirements
Windows
- Win 10+ (64bit)
- 2.5 GHz CPU
- 4 GB RAM
- 2GB free hard disk space
- OpenGL 2.0 compatible GPU
Apple
- Mac OS 10.13+
- 2.5 GHz or Apple Silicon CPU
- 4 GB RAM
- 2GB free hard disk space
- OpenGL 2.0 compatible GPU
